How to Install a Ceiling Fan

How to Install a Ceiling Fan: Key Insights

• A ceiling box rated for a fan can usually hold up to 70 pounds, but the rating has to be marked on the box itself: a standard light fixture box is not automatically safe to use, even if it looks similar.
• Replacing an existing light fixture with a ceiling fan is a different project from adding a fan where no fixture currently exists, and the cost difference between the two often comes as a surprise.
• A fan installed in a bathroom needs to be rated for damp or wet locations depending on its position relative to the tub or shower, which is a detail that's easy to miss when shopping by price alone.
• Most ceiling fan wiring follows the same basic principles as a light fixture, but the added wall control or remote receiver is usually where homeowners get stuck.

In this guide, you'll read about:

1. How to Install a Ceiling Fan: An Overview
2. Types of Ceiling Fans
3. Tools and Materials You'll Need
4. How to Install a Ceiling Fan: Step by Step
5. How to Install Ceiling Fan Wiring
6. How to Install a Bathroom Ceiling Fan
7. When to DIY vs. When to Call a Pro
8. How Much Does Ceiling Fan Installation Cost?
9. Find an Electrician on HomeStars
10. FAQs: Your Questions About Ceiling Fan Installation Answered

How to Install a Ceiling Fan: An Overview

At a high level, installing a ceiling fan means three things: making sure the ceiling can physically support the fan's weight, running or reusing wiring to power it, and assembling the fan itself according to the manufacturer's instructions. The order is important: skipping ahead to assembly before confirming the box and wiring are correct is how fans end up wobbling, humming, or pulling loose over time.

Here's a general guide to how fan weight lines up with box requirements:

Fan or Fixture Weight	Box Requirement
Up to 35 pounds	Box marked for ceiling fan use, secured to a joist or brace bar
35 to 70 pounds	Box marked for the specific higher weight rating, secured to a joist or brace bar
Over 70 pounds	Box must be secured directly to a joist; manufacturer instructions should be followed closely
Standard light fixture only, no fan	Standard fixture box is sufficient, no fan rating needed

If you're replacing an existing light fixture, much of the groundwork is already done: there's likely a box and wiring in place, though it may not be rated to carry a fan's weight. If you're adding a fan to a room that has never had a ceiling fixture, you're starting from scratch with attic or ceiling access, a new circuit run, and a fan-rated box.

Types of Ceiling Fans

Not every ceiling fan installs the same way, and the type you choose affects both the wiring and the mounting hardware.

• Standard fans: Mount close to the ceiling with a short downrod or flush bracket, suited to rooms with average 8 to 9 foot ceilings.
• Low-profile or hugger fans: Mount flush against the ceiling with no downrod, designed for rooms where the ceiling is lower than about 8 feet.
• Downrod fans: Use a longer rod to hang the fan further from the ceiling, which improves airflow in rooms with high or vaulted ceilings.

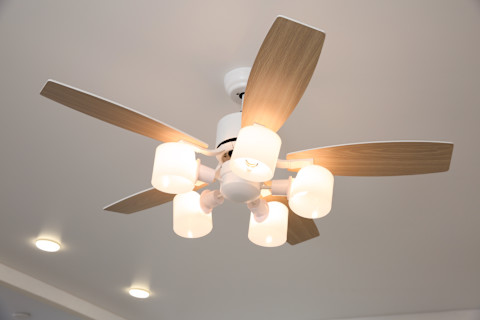

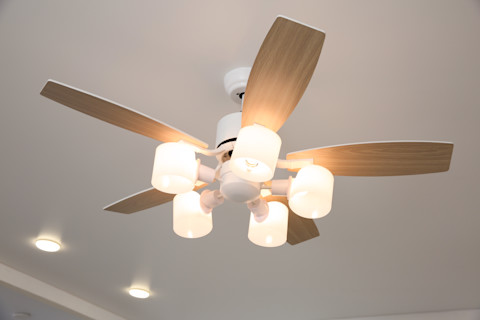

• Fans with integrated lighting: Combine a fan and light fixture on one circuit, which usually means two separate switch legs in the wiring.
• Smart and remote-controlled fans: Add a receiver module inside the fan canopy, which needs its own wiring considerations covered in the next section.
• Damp and wet-rated fans: Built with sealed motors and moisture-resistant materials for bathrooms, covered porches, and other humid spaces.

A quick note on weight: standard residential ceiling fans typically weigh between 15 and 35 pounds, while larger fans with heavy light kits can approach 50 pounds. This is why the rating on your ceiling box matters more than it might seem.

Tools and Materials You'll Need

Before you climb the ladder, gather everything so you're not making trips up and down mid-project.

Tools

• Voltage tester
• Cordless drill with screwdriver bits
• Wire strippers
• Adjustable wrench
• Stepladder
• Stud finder

Materials

• Ceiling fan-rated electrical box
• Wire nuts
• Electrical tape
• Fan-rated mounting bracket and brace bar (if no existing box)
• The ceiling fan kit, including downrod and canopy
• Safety cable (included with most Canadian fan kits)

HomeStars tip: A second pair of hands makes the actual mounting step considerably easier and safer, since ceiling fans are awkward to hold and wire at the same time.

How to Install a Ceiling Fan: Step by Step

With your tools and materials ready, the actual installation comes down to a sequence of steps that build on each other. Skipping or reordering them is usually where mistakes happen, so it's worth following them in order even if a step looks straightforward.

1. Turn off the power at the breaker. Confirm with a voltage tester at the existing fixture or box before touching any wires.
2. Remove the old fixture, if there is one. Take down the light or fan, disconnect the wiring, and check whether the existing box is rated for a ceiling fan.
3. Install a fan-rated box, if needed. If the existing box isn't marked for fan use, replace it with one that's secured directly to a joist or to a brace bar spanning two joists.

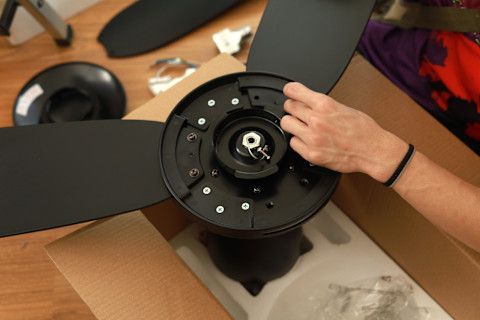

4. Assemble the fan on the ground first. Attach the downrod or flush mount to the motor housing, and feed the wiring through before lifting anything into place.

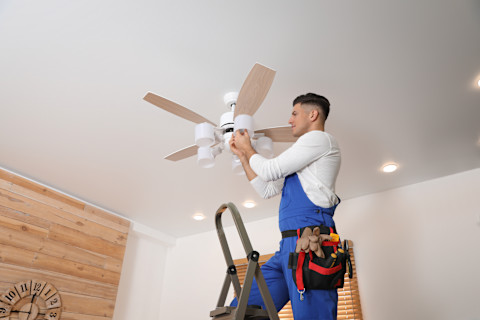

5. Mount the bracket and hang the fan. Most fan brackets include a hook so the motor housing can hang temporarily while you complete the wiring.
6. Connect the wiring. Match wire colours to the fan's instructions, typically black to black, white to white, and the ground wire to the box's ground screw.
7. Attach the safety cable. Secure it to the structural framing above, not just the box itself.
8. Install the canopy and blades. Attach the canopy to cover the wiring connection, then add the blades according to the manufacturer's sequence.
9. Restore power and test. Turn the breaker back on and test the fan at each speed, along with the light kit if one is installed.

How to Install Ceiling Fan Wiring

Ceiling fan wiring follows the same basic principles as wiring a light fixture, with a couple of additions depending on the fan you've chosen.

A standard fan with no light kit typically needs three wires: a black hot wire, a white neutral, and a bare or green ground wire. If the fan includes a light, there will usually be a second hot wire (often a different colour, like blue or red) so the fan and light can be controlled by separate switches.

For fans with remote controls, the receiver is usually housed inside the canopy and wired between the incoming power and the fan motor itself; you won't typically need to run anything different from the ceiling box, but you will need to follow the receiver's specific wiring diagram rather than wiring the fan directly.

If the room doesn't already have wiring in place for a ceiling fixture, a new circuit needs to be run from the panel or an existing junction box, which usually means attic or crawl space access, and is where many DIY projects turn into a call to a pro.

How to Install a Bathroom Ceiling Fan

A bathroom ceiling fan, in this context, refers to a decorative paddle fan mounted in the bathroom rather than a ventilation exhaust fan. If you're looking to replace or add an exhaust fan instead, the wiring and venting requirements are different; our bathroom fan installation cost guide covers that project separately and goes into more depth on pricing.

Installing a ceiling fan in a bathroom adds a few considerations on top of the standard process, mainly because of moisture:

• Wet-location rating: Required for fans installed directly over a shower or tub.
• Damp-location rating: Suitable for fans installed elsewhere in the bathroom, away from direct water exposure.
• Humidity exposure: Even outside the wet zone, bathroom fans run in a more humid environment than other rooms, which is why a standard indoor-rated fan isn't recommended.

Check the fan's packaging for its rating before you buy, since it needs to match where the fan will be mounted.

Bathroom wiring also tends to be more tightly regulated than other rooms in the house, particularly around how close fixtures can be to a water source and how circuits are protected. Because of this, many homeowners choose to have a bathroom ceiling fan installed by a licensed electrician rather than tackling it as a DIY project, especially if the bathroom doesn't already have a ceiling fixture in place.

When to DIY vs. When to Call a Pro

Whether this is a reasonable DIY project depends mostly on what's already in your ceiling.

DIY is usually reasonable when:

• You're replacing an existing fixture with a fan-rated box already in place.
• The wiring is straightforward, with no need to run new circuits.
• You're comfortable working at height and confirming power is off before touching wires.

Calling a pro makes more sense when:

• There's no existing ceiling fixture and new wiring needs to be run.
• The room is a bathroom or another area with stricter wiring requirements.
• You're not confident identifying or replacing a fan-rated box.
• The ceiling is vaulted, very high, or otherwise difficult to access safely.

Getting this step wrong isn't just inconvenient: a fan that isn't properly supported or wired can come loose over time or create a fire risk, so it's worth being honest about your comfort level before starting.

How Much Does Ceiling Fan Installation Cost?

Ceiling fan installation costs in Canada generally fall between $200 and $450 when an electrician is replacing an existing light fixture with a fan, including labour and standard mounting hardware. This range covers most straightforward swaps where the wiring and box just need to be updated to support the fan's weight.

When there's no existing fixture and new wiring needs to be run from the panel or a nearby circuit, costs typically climb to $400 to $800 or more, depending on attic access and how far the new circuit has to travel.

Most electricians in Canada charge between $65 and $130 per hour, with a service call or minimum fee of $75 to $150 that covers travel and an initial assessment. For a full breakdown of electrician rates by project type, see our cost to hire an electrician guide. If you're also updating other light fixtures at the same time, our cost to install lights guide breaks down those costs separately.

Find an Electrician on HomeStars

Ceiling fan installation looks simple on paper, but the details that actually matter, like whether a box is rated for the fan's weight or whether a bathroom fixture needs a wet-location rating, aren't always obvious until the ceiling is already open. HomeStars connects you with electricians near you so you can read reviews from other homeowners, compare quotes, and choose someone who's familiar with the specific wiring situation in your home before any work begins.

Find an electrician for your ceiling fan installation

FAQs: Your Questions About Ceiling Fan Installation Answered

What size ceiling fan do I need for my room?

As a general guide, rooms up to 75 square feet suit a fan with a 36-inch blade span, rooms up to 175 square feet suit 42 to 48 inches, and larger living rooms or bedrooms up to 350 square feet typically need a 52 to 56-inch fan. Going too small for a large room means the fan won't move enough air to feel effective, while an oversized fan in a small room can feel overwhelming and may not have enough clearance from the walls.

Do I need a permit to install a ceiling fan in Canada?

In most provinces, replacing a light fixture with a ceiling fan on existing wiring doesn't require a permit, but adding new wiring or a new circuit usually does. Requirements vary by province and municipality, so it's worth checking with your local electrical authority, such as the ESA in Ontario or Technical Safety BC, before starting. A pro found through HomeStars can confirm what applies in your area and pull any required permit on your behalf.

How long does ceiling fan installation usually take?

Replacing an existing light fixture with a ceiling fan typically takes one to two hours for a single fan. If new wiring needs to be run, especially through finished ceilings or without attic access, the project can take half a day or longer.

How much can a ceiling fan save on energy costs?

Running a ceiling fan alongside your air conditioner allows you to raise the thermostat by a few degrees without losing comfort, since the moving air makes a room feel cooler than the actual temperature. In winter, reversing the fan direction to push warm air down from the ceiling can also reduce how hard your heating system has to work. The exact savings depend on your home's layout and how consistently the fan is used.

What is the ideal height to mount a ceiling fan?

For both safety and performance, the blades should sit at least 7 feet above the floor and at least 10 inches below the ceiling. In rooms with standard 8-foot ceilings, this usually means choosing a flush-mount or hugger fan rather than one with a long downrod. You can find a pro through HomeStars who can confirm the right configuration for your specific ceiling height before you buy a fan.
