How to Tell if a Fuse Is Blown: A Guide

How to Tell if a Fuse Is Blown: Key Insights

• Ceramic cartridge fuses give no visual indication when they blow, so a multimeter test is the only reliable way to confirm them.
• A fuse that blows once is working correctly; a fuse that blows repeatedly signals an overloaded or faulted circuit that swapping the fuse won't fix.
• Glass fuses with a cloudy or blackened window blew from a short circuit, while ones with just a clean gap in the strip failed from a gradual overload.
• Testing a fuse while it's still in a live circuit can give false readings and risks damaging the multimeter, so the fuse has to come out first.
• Replacing a blown fuse with a higher amp rating removes the circuit protection it was designed to provide.

In this guide, you'll read about:

1. How to Tell if a Fuse Is Blown in Your House
2. What Does a Blown Fuse Look Like?
3. How to Check a Fuse with a Multimeter
4. Is It Safe to Check a Fuse Yourself?
5. Find an Electrician on HomeStars
6. FAQs

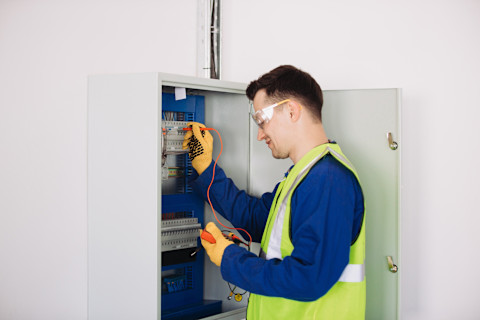

How to Tell if a Fuse Is Blown in Your House

A fuse is a one-time safety device. Inside it is a thin metal strip that melts on purpose when too much current passes through, breaking the circuit before the wiring overheats. Once that strip melts, the fuse is done. It has to be replaced before the circuit works again, unlike a breaker, which can simply be flipped back on. If you have a breaker panel rather than a fuse panel, our guide on how to replace an electrical breaker covers that process separately.

The most common clue is a loss of power limited to one part of the house. Before checking the fuse panel, it's worth confirming the outage isn't coming from the utility side, and that no breakers have tripped. If everything else checks out, a blown fuse is the likely cause. A few other signs worth checking for:

• Flickering lights: a fuse that's partially failing can cause lights on its circuit to dim or flicker before cutting out completely
• A dead outlet or switch: nothing happens when you plug something in or flip a switch, even though the panel looks normal
• A burning smell near the panel: this means the fuse overheated, and it's worth treating as a safety issue rather than a minor inconvenience
• Repeated failures: the same fuse blowing again and again usually means the circuit is overloaded or there's a deeper wiring fault behind it

Older Canadian homes, particularly anything built before the 1960s, are more likely to still run on a fuse panel rather than a breaker panel. If you're not sure which one you have, the panel itself will tell you: breakers are switches you flip, while fuses are round glass or ceramic pieces you unscrew.

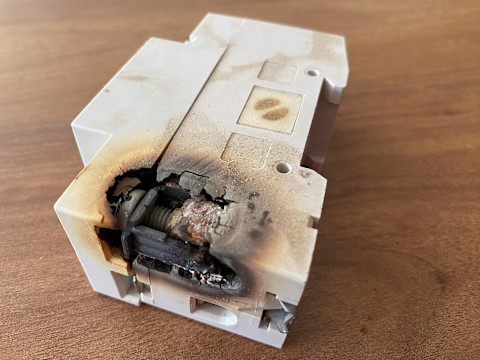

What Does a Blown Fuse Look Like?

Once the problem is narrowed down to a fuse, a quick look often confirms it. What you'll actually see depends on the type of fuse involved.

Glass Fuses

Glass plug fuses, the type most common in older Canadian fuse panels, let you see the metal strip inside. On a working fuse, that strip runs cleanly from one end to the other. On a blown one, there's usually a visible gap in the strip, or the inside of the glass looks smoky or scorched. A fuse that blew from a short circuit, rather than a slow overload, often shows a darker, more obvious burn mark.

Ceramic and Cartridge Fuses

Ceramic cartridge fuses, found in some appliances and older panels, have a solid body that hides the element inside. There's no reliable way to confirm a blown ceramic fuse by sight alone. A faint rattle when you shake it can mean the internal strip has broken loose, but that's not conclusive on its own. For these, a multimeter is the only way to know for sure, which is exactly what the next section covers.

Automotive-Style Blade Fuses

These show up in some smaller appliances and electronics, not just vehicles. The plastic housing is clear, with a thin metal strip shaped like a U or W connecting the two prongs. A snapped, melted, or gapped strip means the fuse is blown.

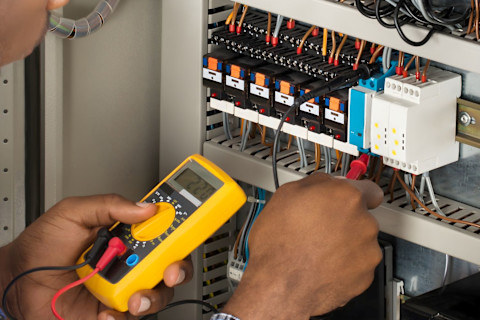

How to Check a Fuse with a Multimeter

A multimeter removes the guesswork, especially for fuses you can't see through. Here's how to run the test:

• Shut off the power: turn off the main breaker, or pull the main fuse, before touching a fuse panel
• Remove the fuse: testing a fuse while it's still in a live circuit can damage the multimeter and isn't safe
• Set the multimeter: switch it to continuity mode, usually marked with a small sound wave symbol
• Touch the probes together: confirm the meter beeps on its own before testing anything
• Test the fuse: place one probe on each end of the fuse and hold steady contact

A beep, or a reading close to zero ohms, means the fuse is fine. Silence, or a reading of "OL" (over limit) on the display, means the fuse has blown. If the multimeter doesn't have a continuity setting, the resistance (ohms) setting works the same way: near zero means good, infinite or "OL" means blown.

Is It Safe to Check a Fuse Yourself?

Checking a fuse with a multimeter is a low-risk task, as long as the power is off and the fuse is out of its holder before testing. A few rules are worth following regardless of how comfortable you are with electrical work:

• Never test a fuse while the circuit is live
• Avoid touching the metal probes with bare hands while testing
• Replace a blown fuse only with one of the same amp rating, never a higher one
• Stop and call an electrician if there's a burning smell, scorch marks beyond the fuse itself, or the same fuse keeps blowing

That last point matters more than people expect. A fuse that blows once is doing its job. A fuse that blows repeatedly is telling you something else on the circuit needs attention, and that's not something worth guessing at.

If repeated fuse failures are pointing to a deeper problem, an electrical inspection is a good starting point before committing to larger work.

Find an Electrician on HomeStars

If a fuse keeps blowing, or there's an old fuse panel you'd rather not open up, an electrician can track down the actual cause instead of just swapping parts. You can compare quotes and find an electrician near you on HomeStars before booking anyone. For a sense of what a visit might run, the electricians cost guide breaks down typical hourly rates and service call fees across the country.

Find an electrician for your fuse panel on HomeStars

FAQs: Your Questions About Blown Fuses Answered

Do fuse panels affect home insurance in Canada?

Many Canadian insurers charge higher premiums for homes with fuse panels, and some will decline coverage altogether, particularly for panels with aluminum wiring or those that have been modified with oversized fuses. It's worth contacting your insurer before and after any panel work, since upgrading to a breaker panel can sometimes bring the premium down enough to offset part of the upgrade cost.

What should I do if a replacement fuse blows immediately?

Don't replace it a second time. A fuse that blows the moment it's installed means something on the circuit is drawing more current than it should, whether from a faulty appliance, damaged wiring, or a short somewhere in the circuit. An electrician can run a proper diagnosis to find the source. You can find one near you through HomeStars and compare quotes before booking.

Is it worth upgrading from a fuse panel to a breaker panel?

For most Canadian homes still running on a fuse panel, an upgrade is worth considering, particularly if the panel is undersized for the home's current electrical load or if insurance costs are a factor. A basic panel replacement typically starts around $1,500, with more comprehensive service upgrades running $3,000 to $5,000 depending on the scope. An electrician on HomeStars can assess whether your current panel meets your household's needs before you commit to anything. See our electrical panel upgrade cost guide for a full cost breakdown.

What amperage fuse should I use as a replacement?

Match the amp rating printed on the fuse exactly. Installing a higher-rated fuse removes the protection it's meant to provide, since it allows more current through before the circuit breaks. If you're unsure what rating a circuit calls for, an electrician found through HomeStars can confirm it rather than guessing.

How much does it cost to have an electrician inspect a fuse panel?

A basic electrical inspection on HomeStars typically runs $100 to $400, with more detailed assessments reaching $550. If the inspection finds that a full panel upgrade is needed, that's a separate cost, generally starting around $1,500 for a basic replacement.

Why do some fuses blow more often in winter?

Space heaters, block heaters, and holiday lighting all add load to circuits that may already be close to capacity, which is why fuse panels in older homes tend to see more activity once the temperature drops.
