A Guide to Garage Door Opener Installation

Garage Door Opener Installation: Key Insights

• A new opener will not fix a door that binds, sags, or will not stay open on its own. Get the door itself serviced first, otherwise the new motor just wears out faster carrying weight it should not have to.
• If you are keeping the same door, the header bracket usually goes back in the same spot. If you have switched to a heavier door style, check that placement against the new opener's specifications before mounting anything.
• Placing the opener unit near the edge of the garage, away from steel doors and reinforced walls, tends to keep smartphone-based control more consistent. It is easier to plan for this before installation than to troubleshoot it after.
• Professional garage opener installation, including the unit and labour, typically runs $250 to $600. If you supply your own opener and pay a pro for labour alone, that portion of the job often runs closer to $100 to $250.

In this guide, you'll read about:

1. Garage Door Opener Installation: An Overview
2. Types of Garage Door Openers
3. What Affects Your Garage Door Opener Installation
4. Tools and Materials You Need to Install a Garage Door Opener
5. How to Install a Garage Door Opener Step by Step
6. Can You DIY Your Garage Door Opener Installation?
7. Find a Garage Specialist Pro on HomeStars
8. FAQs: Your Questions About Garage Door Opener Installation Answered

Garage Door Opener Installation: An Overview

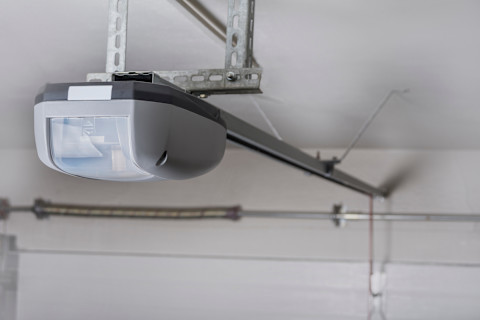

A garage door opener is the motor, rail, and control system that lifts and lowers the door on command, instead of you doing it by hand. Installation becomes necessary when a motor burns out, when you are upgrading to smart features, or when you are replacing the door itself and the old opener is not compatible with the new panel weight or safety sensors.

A few signs point to needing a new opener rather than a repair: the motor runs but the door will not move, the unit makes a burning smell, the logic board no longer holds a program, or replacement parts for an older model are no longer available. If the door itself is off track, unbalanced, or the springs look worn, sort that out before touching the opener. Installing a new motor on a door that is not working properly just shortens the life of both.

Types of Garage Door Openers

Before installing garage door openers, it helps to know what is actually on the market. Openers are generally grouped by drive type, and each comes with a different balance of noise, price, and maintenance.

Drive Type	What to Know
Chain drive	Uses a metal chain to pull the trolley along the rail. The most affordable option and the loudest, which matters if the garage sits under or beside living space.
Belt drive	Uses a rubber or fiberglass belt instead of a chain. Quieter operation, slightly higher price, and a good fit for attached garages.
Screw drive	A threaded steel rod moves the trolley. Fewer moving parts than a chain, moderate noise, and generally less maintenance over time.
Direct drive	The motor itself travels along a stationary chain inside the rail. Runs quietly and smoothly, with a higher price than chain or belt options.
Wall-mount (jackshaft)	Mounts beside the door instead of on the ceiling, driving the torsion bar directly. Useful for garages with low or sloped ceilings, or where ceiling space is needed for storage.

Beyond drive type, many current openers add wifi connectivity, battery backup for power outages, and built-in cameras or motion lighting. These features add to the unit cost but do not change the basic installation steps.

What Affects Your Garage Door Opener Installation

A handful of factors shape both the cost and the complexity of garage opener installation:

• Drive type and horsepower: Chain drive units are generally the least expensive to buy and install, while belt drive, direct drive, and higher-horsepower models cost more for the unit itself.
• Smart features: Wifi connectivity, battery backup, and camera-equipped units add to material cost but rarely add installation time.
• Ceiling height and clearance: Standard installations assume a typical ceiling height. Vaulted, sloped, or low ceilings may need a low-headroom kit or a wall-mount unit, which adds cost and time.
• Power source: Most openers need a nearby outlet. If the garage does not already have one within reach of the motor unit, an electrician may need to add one before the opener goes in.
• Professional versus DIY labour: Paying for parts and labour together generally costs more upfront than doing the work yourself, but a pro brings speed and the ability to catch a door balance issue before it becomes the opener's problem.

For a full breakdown of what garage door projects cost across Canada, including installation and common repairs, see our garage door installation cost guide. If your existing opener just needs a fix rather than a full swap, our garage door repair cost guide breaks down what individual repairs typically run.

Tools and Materials You Need to Install a Garage Door Opener

Before you start, gather everything so you are not stopping mid-project to find a missing part.

Tools:

• Cordless drill and driver bits: For assembling the rail and mounting brackets.
• Socket set and wrenches: For bolting the motor unit and header bracket in place.
• Ladder: Tall enough to comfortably reach the ceiling with both hands free.
• Stud finder: To locate solid framing for the header bracket and motor mounting straps.
• Level: To keep the rail straight and the safety sensors aligned.
• Tape measure: For centring the header bracket and setting sensor height.
• Wire strippers: If the unit is hardwired rather than plugged into an outlet.

Materials:

• Opener kit: Motor unit, rail sections, trolley, and remote controls, sized for your door's weight and width.
• Mounting hardware: Lag bolts, angle brackets, and hanging straps, usually included with the kit.
• Safety sensors: A photo-eye pair that stops the door if something blocks its path, required on every installation.
• Wall console: The interior button that opens and closes the door manually.
• Keypad (optional): For entering the garage without a remote.

How to Install a Garage Door Opener Step by Step

Once you have the rail, motor, and hardware laid out, the actual installation follows a fairly fixed order: build the rail assembly on the ground, then work your way up to the ceiling, and finish with wiring and testing. Each step builds on the last, so it is worth reading through the manufacturer's manual once before starting, since kits vary slightly in bracket style and wiring layout.

Assemble the Rail

Lay the rail sections on a flat surface and connect them according to the kit instructions. Slide the trolley onto the rail before attaching it to the motor unit, since it is much harder to add once the rail is mounted overhead.

Mount the Header Bracket

Manually lift the door to its highest point of travel and mark the wall above the opening at that height. The header bracket line usually sits about two inches above that mark. Anchor the bracket into solid framing, not just drywall.

Hang the Motor Unit

Lift the assembled rail and motor unit into place, attaching the rail end to the header bracket. Support the motor end with the hanging brackets included in the kit, checking with a level that the rail runs straight and square to the door.

Connect the Door Arm

Attach the curved and straight sections of the door arm between the trolley and the bracket on top of the door panel, following the angle shown in the manufacturer's manual. A poorly angled arm is one of the more common causes of jerky operation later on.

Install the Safety Sensors

Mount the photo-eye sensors on each side of the door track, about six inches off the floor, and align them so the indicator lights confirm a clear connection between the two. This safety feature is not optional. It is what stops the door from closing on a person, pet, or object in its path.

Wire the Wall Console and Power

Run low-voltage wire from the motor unit to the wall console near the entry door, then plug in or hardwire the motor unit depending on your setup. Program the remote and keypad following the unit's instructions.

Test Everything

Run the door through a few open and close cycles, then test the auto-reverse function by placing a piece of wood in the door's path while closing. The door should stop and reverse immediately. Adjust the force and travel limits if the door struggles to fully open or close.

Can You DIY Your Garage Door Opener Installation?

Installing a garage door opener is within reach for a homeowner comfortable with basic tools, ladders, and following a manual closely. Most kits are designed for a single afternoon of work for one or two people.

That said, a few situations tip the balance toward hiring a pro:

• The garage has vaulted or unusually low ceilings that need a specialty mount.
• There is no outlet near the motor location and new wiring is required.
• The existing door does not open and close smoothly on its own, which points to a spring or track issue outside the scope of an opener swap.
• You are not confident working overhead with power tools, or do not have a second person to help support the rail while it is mounted.

Getting the safety sensor alignment and force settings wrong is the most common DIY mistake, and it directly affects how the door behaves around people and pets. If anything about the installation feels uncertain once you are partway through, that is a reasonable point to call in a garage specialist pro rather than push ahead.

Get matched with garage door opener installation pros

Find a Garage Specialist Pro on HomeStars

If the project has grown beyond a straightforward swap, or you'd rather not spend a Saturday on a ladder, HomeStars connects you with local garage specialists who can handle opener installation and other garage services regularly. Read reviews from other homeowners, compare a few responses, and pick who you want in your garage before any work begins. Describe what you need, whether that's a straightforward opener swap or a full door and opener replacement, and let interested pros come to you with quotes.

Find garage door opener installation pros near you

FAQs: Your Questions About Garage Door Opener Installation Answered

Do I need a permit to install a garage door opener in Canada?

No. Replacing or installing a garage door opener on its own does not typically require a permit, since it does not change the structure of the garage. If the opener installation is part of a larger project, such as enlarging the door opening or adding new electrical wiring, check with your municipality first, as those changes may trigger permit requirements.

Will a new garage door opener work with my existing remotes and keypad?

It depends on the brand and age of your old unit. Most manufacturers use their own radio frequency for remotes, so a new opener from a different brand usually needs new remotes and a new keypad, even if the wall console looks similar. Some newer models include a compatibility mode for older accessories, so check the packaging or manual before assuming your existing remotes will pair with the new motor.

How long does a garage door opener typically last?

Most residential openers last between 10 and 15 years with normal use, though heavier daily use or a garage exposed to extreme temperature swings can shorten that lifespan. Chain and belt components tend to wear faster than the motor itself, so a noisy unit does not always mean full replacement is the only option. A pro found through HomeStars can assess whether a repair or a full opener swap makes more sense for your specific unit.

What happens to my garage door opener if the power goes out?

Every opener includes a manual release cord, usually a red handle hanging from the trolley, that disconnects the door from the motor so it can be opened and closed by hand during an outage. Many current models also offer a battery backup add-on that keeps the opener working automatically for a limited number of cycles after the power drops, which is worth considering if your area sees frequent outages.

Does installing a new garage door opener affect my home insurance or resale value?

A functioning, properly installed opener is generally viewed as a basic expectation rather than a feature that changes your insurance premium on its own, though a broken or unsafe door and opener combination can occasionally be flagged during a home inspection. From a resale standpoint, a smoothly operating, reasonably current opener removes a small item from a buyer's checklist. If you are unsure whether your current setup needs attention before listing your home, a garage specialist pro on HomeStars can give you a straightforward opinion during a quote visit.
